NEED TO KNOW

  • The Foundation of Hybrid Scaling: EUV targets the smallest layers, but DUV (ArFi/KrF) patterns 2–3x more layers per wafer in modern sub-3nm chip stacks.
  • Economic Workhorse: ASML’s TWINSCAN NXT immersion tools achieve throughputs exceeding 6,000 wafers/day, delivering low cost-per-layer efficiency.
  • Broad Market Demand: Essential for mature nodes (≥ 28nm), automotive, IoT, power electronics, and 3D NAND/HBM memory production.
  • Market Leader: ASML holds 85–90% of advanced DUV immersion share, complemented by Nikon and Canon.

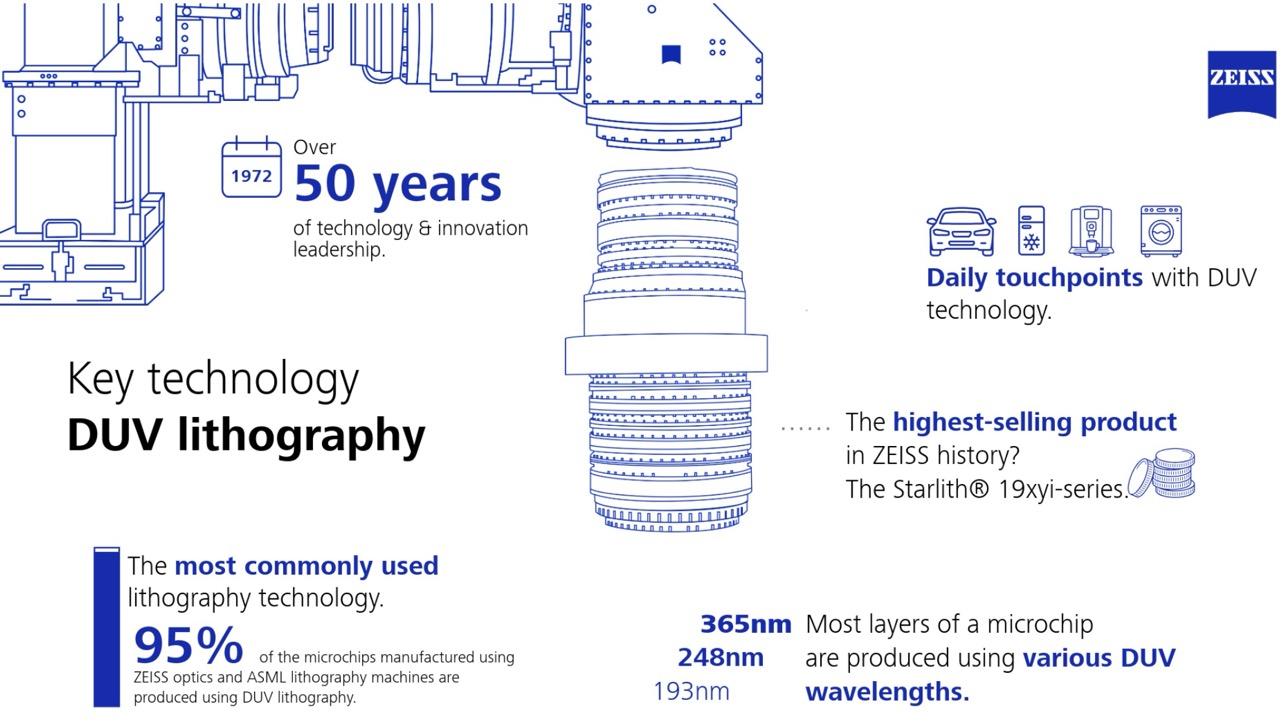

Deep Ultraviolet (DUV) lithography, primarily using 193nm ArF immersion (ArFi) and 248nm KrF systems, remains essential for patterning the majority of layers in both mature nodes (e.g., 28nm+) and advanced chips /EETimes/. It relies on high-purity photoresists, precise optics, and multi-patterning techniques like self-aligned double/quadruple patterning (SADP/SAQP) to achieve fine features economically. ASML’s TWINSCAN NXT series (e.g., NXT:2050i, NXT:2100i) dominates DUV machinery with throughputs ranging from 4,600 to over 6,300 wafers per day, delivering superior overlay, focus, and productivity for logic, DRAM, and specialty devices.

Here is how specific models in the NXT series perform /ASML/:

  • TWINSCAN NXT:1980Fi: Reaches up to 330 wafers per hour (approx. 7,920 theoretically).
  • TWINSCAN NXT:2050i: Produces 295 wafers per hour, capable of 4,600+ wafers per day.
  • TWINSCAN NXT:2000i: Achieves a champion productivity of 4,600 wafers per day natively, with records of over 6,300 exposed in a single day by customers.

Key challenges include sustaining yield and cost amid multi-patterning complexity, line-edge roughness, and defect control, especially as nodes push limits with existing tools. Emerging optimizations target higher throughput, better cross-matching with EUV layers /ASML/, improved resists (e.g., reduced clustering via process tweaks like post-exposure bake), and sustainability in materials/chemicals. While not as glamorous as EUV, DUV’s reliability and lower cost per layer make it indispensable creating 2-3x more layers per wafer than EUV in hybrid flows.

Demand is robust and growing for mature-node capacity in automotive, IoT, power, analog, and RF chips, plus support for leading-edge logic production. Global semiconductor expansion, AI-driven memory needs, and government fab incentives (e.g., CHIPS Acts) drive wafer starts, with DUV handling mainstream and non-critical layers. Market projections show steady growth through 2030+, fueled by geographic diversification of semiconductor fabrication /Mordor Intelligence/.

ASML holds ~85-90% of advanced DUV immersion share, with Nikon and Canon serving mature/specialty segments while China’s SMEE is advancing domestic alternatives /AI Futures Project/. Geopolitical risks remain high as export controls limit advanced DUV to China /Congress/, spurring self-sufficiency efforts, while the supply chain concentrates in the Netherlands, Japan, and optics partners like Zeiss. Installed bases are massive (>1,300 immersion systems), with strong recycling/upgrades extending tool life.

In summary, DUV lithography remains a vital pillar of semiconductor manufacturing rather than a legacy technology. Its evolution through advanced immersion systems (ArFi), multi-patterning integration (SADP/SAQP), and precise EUV cross-matching ensures high-volume yield and cost performance across logic and memory stacks. DUV’s operational reliability, cost-per-layer efficiency, and expanding global footprint make it essential for sustaining the physical and economic momentum of the global electronics ecosystem.

Key Insights

How many lithography layers are typically patterned with DUV versus EUV in advanced 3nm or 2nm logic processes?

A modern 3nm or 2nm logic process stack comprises 60 to 90+ total lithography masking steps. EUV is selectively deployed for 10 to 20 critical, dense layers, leaving 40 to 70+ layers to be processed by DUV (ArFi and KrF), yielding a 2x–3x ratio.

What is the install base and volume estimate for DUV lithography tools in semiconductor fabs?

DUV lithography systems, particularly ASML’s TWINSCAN NXT immersion scanners, form the backbone of semiconductor production with over 1,300 high-end immersion tools installed globally, handling the majority of wafer layers even in advanced AI accelerators like NVIDIA’s Vera Rubin. In leading-edge fabs (TSMC, Samsung, Intel), DUV tools pattern 2–3 times more layers than EUV per wafer, supporting high-volume mature-node capacity expansions critical for HBM, packaging, and support structures in AI GPUs. Annual shipments continue strongly alongside EUV ramp, with productivity upgrades enabling thousands of wafers per day per tool to meet surging AI-driven demand.

What is the most critical bottleneck process technology in DUV lithography for mature nodes?

The most critical bottleneck in DUV lithography remains multi-patterning complexity (SADP/SAQP) combined with overlay precision, line-edge roughness, and defect control when pushing mature nodes or non-critical layers in advanced processes. While tools like ASML NXT:2100i deliver excellent throughput and matching with EUV, achieving cost-effective yield at scale for high-volume applications requires ongoing advances in photoresist purity, process optimization, and fab-wide integration.

What are the unit economics, long-term supply agreements, cyclicality, and margin growth/defensibility for DUV lithography systems?

DUV lithography systems offer strong unit economics through high utilization, service annuities (growing >30%), and upgrade packages on a massive installed base, with ASML leveraging AI-driven demand and supply constraints to pursue price increases despite TSMC’s pushback on broader capex pressures. Long-term supply agreements with major foundries provide visibility amid cyclicality, while robust memory/logic demand, capacity expansions, and ASML’s bottleneck positioning support margin growth and defensibility as the AI buildout drives higher overall costs for semiconductor manufacturing.
