Nanoimprint Lithography: Patterning the Future of Photonics and Semiconductor Manufacturing
- David Rogers
- AI Buildout Supply Chain
- 2026-07-20

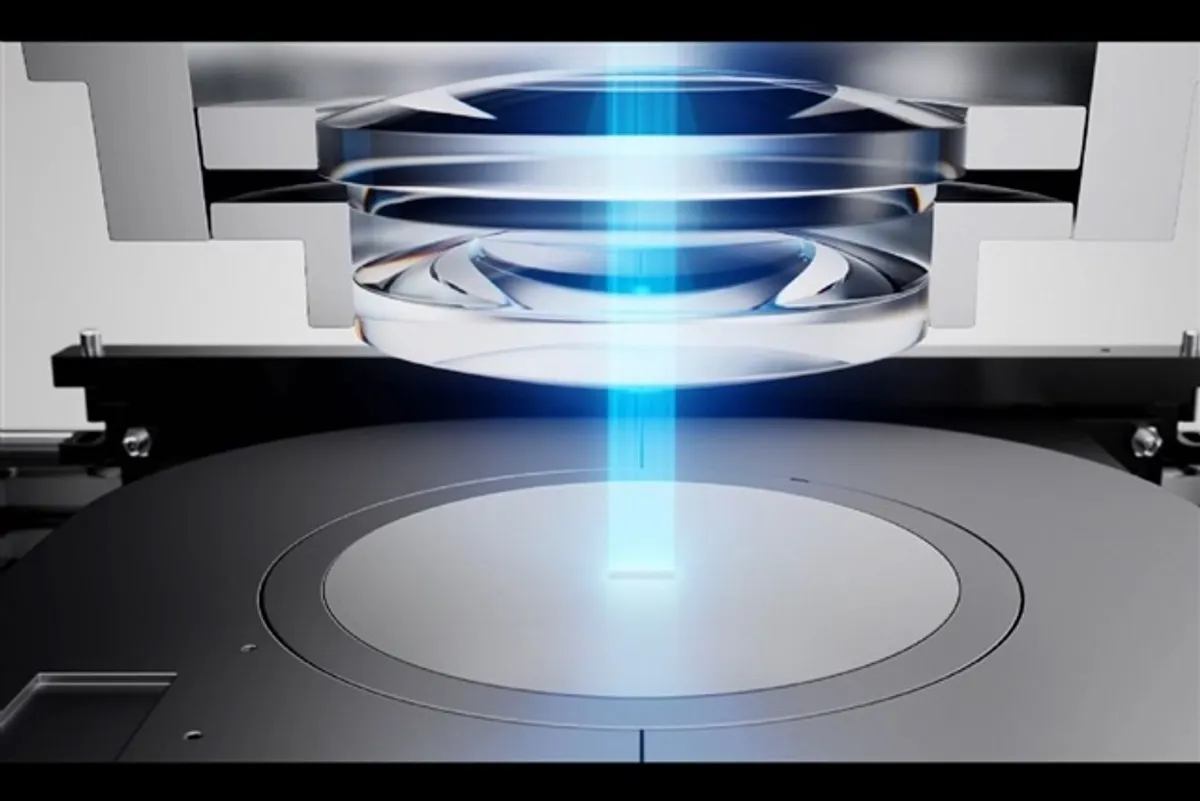

In nanoimprint lithography (NIL), a high-precision quartz template (or mold) acts like a stamp, pressing into a low-viscosity resist coated onto a wafer /IEEE/. The resist fills the nanoscale features via capillary action before a standard UV mercury lamp cures the pattern, allowing the template to be cleanly removed. By eliminating the complex optics and high-power light sources required by traditional photolithography, this contact-based approach achieves a 14 nm resolution that is suitable for 5 nm-class logic chips. Beyond standard chips, NIL excels at crafting precise 3D nanostructures ideal for photonics, including waveguides, grating couplers, metasurfaces, and silicon photonic integrated circuits (PICs). Advanced high-index hybrid resists and sol-gel materials further enhance these structures, meeting the strict refractive index and thermal stability demands of modern optical devices.
However, several challenges continue to hamper NIL’s adoption in high-volume semiconductor manufacturing. Mechanical stress, particle contamination, and physical wear limit template durability to roughly 50 wafers in practice, driving up mask costs and inspection overhead. Furthermore, overlay alignment accuracy remains about four times worse than what multilayer logic manufacturing demands /Semiconductor Engineering/, while defects like incomplete filling or pattern separation persist. Throughput also lags behind EUV systems, topping out around 100 wafers per hour (configured as 25 wafers per hour across four cells in a single toolset), though NIL partially offsets this with drastically lower power consumption, lower capital costs, and superior material efficiency /SemiAnalysis/. To address these bottlenecks, researchers are developing hybrid manufacturing processes, enhanced metrology tools, and AI-optimized molds, particularly for photonics applications where ultra-tight overlay constraints are less critical.
Driven by the rise of AI data centers, demand for NIL is accelerating rapidly in the optical interconnect space. By enabling cost-effective, scalable production of silicon photonics, NIL facilitates high-bandwidth, energy-efficient optical links designed to overcome the physical throughput limitations of traditional copper interconnects. Beyond data centers, the technology underpins advancements in augmented reality optics, high-efficiency LEDs, photovoltaic light-trapping layers, and environmental sensors. Industry analysts project substantial growth for the NIL equipment market, positioning it not as a direct replacement for EUV on leading-edge logic nodes, but as a vital complementary technology for memory layers, back-end interconnects, and specialty photonic devices /Grand View Research/.
On the commercial front, Canon leads the market with its flagship FPA-1200NZ2C system /Canon/, supported by an ecosystem that includes Dai Nippon Printing for templates and materials suppliers like Toyo Gosei, Morphotonics, and Scivax. This grants Japan a concentrated hold on NIL processing technology, presenting lower geopolitical risk than ASML and Zeiss’s EUV monopoly, albeit with its own template supply dependencies. Concurrently, emerging Chinese firms like Prinano have validated mass production for photonic chips using NIL in partnership with Shenzhen Litra Technology and its PL-AS vacuum air-cushion platform /IE/. Even so, near-term equipment capacity growth remains controlled, with market leaders like Canon targeting modest production volumes of 10 to 20 units annually.
Ultimately, nanoimprint lithography offers a compelling, low-power alternative to conventional photolithography by dramatically lowering the cost barrier for complex nanostructures. While overlay and template wear challenges may slow its displacement of EUV in leading-edge logic, its distinct advantages make it uniquely suited for the surging demand in photonics and optical communications /Semiconductor Engineering/. As manufacturing ecosystems mature and AI-driven optimizations refine tool performance, NIL is poised to become a competitive pillar of next-generation optical and semiconductor manufacturing.
Key Insights
What are the main economic advantages of Nanoimprint Lithography (NIL) versus EUV?
NIL offers significant cost-of-ownership advantages over EUV lithography, driven primarily by lower upfront capital expenditure and dramatically reduced energy consumption. NIL tools cost roughly $15–30 million per system—about one-tenth the price of a modern EUV scanner ($150–300+ million) while consuming up to 90% less power to operate. Additionally, its simplified process flow reduces the total tool count and operational steps required in the fab. Recent breakthroughs, such as Dai Nippon Printing’s 10 nm line-width templates designed for 1.4 nm-class nodes, demonstrate that NIL can achieve competitive logic-level resolution at a fraction of EUV's cost. While short template lifespans (currently ~50 wafers) remain a challenge, NIL already delivers superior unit economics for application layers like photonics and memory.
What is the most critical process bottleneck for Nanoimprint Lithography in the AI buildout?
The main operational bottleneck is template durability and defect density caused by the physical contact nature of the imprinting process. In production, mechanical stress, particle contamination, and physical wear limit template lifetimes to roughly 50 wafers—far below the 500+ wafer threshold needed for high-volume logic manufacturing. Secondary challenges include overlay alignment precision (which lags logic requirements by about 4x) and tool throughput (~25 wafers/hour per cell). However, these constraints are significantly less prohibitive for AI-driven photonics and optical interconnects, where complex 3D nanostructures and low manufacturing costs take priority over ultra-dense multilayer alignment.
What are the unit economics of Nanoimprint Lithography machinery, including supply agreements, cyclicality, and margin defensibility?
NIL tools deliver compelling economics by pairing low capital expenditures with minimal material waste from jet-dispensed resists. For equipment vendors like Canon, profitability is anchored by high-margin tool sales, recurring maintenance services, and consumable ecosystem partnerships (e.g., template replication with Dai Nippon Printing). Long-term supply agreements with foundries and memory manufacturers provide steady revenue visibility. Furthermore, NIL exhibits lower cyclicality than leading-edge EUV because its adoption spans diverse growth markets beyond traditional logic, including silicon photonics, optical sensors, and AR displays. Its margin defensibility is fortified by deep process know-how and a tight, Japan-centric concentration of specialized template and material suppliers—though improving template longevity remains the critical variable to maintaining its ~40% cost advantage over deep-UV multi-patterning.
