PFAS-Free Anti-Stick Solutions for NIL: Powering Sustainable Nanoimprint Lithography in the AI Buildout
- David Rogers
- AI Buildout Supply Chain
- 2026-07-16

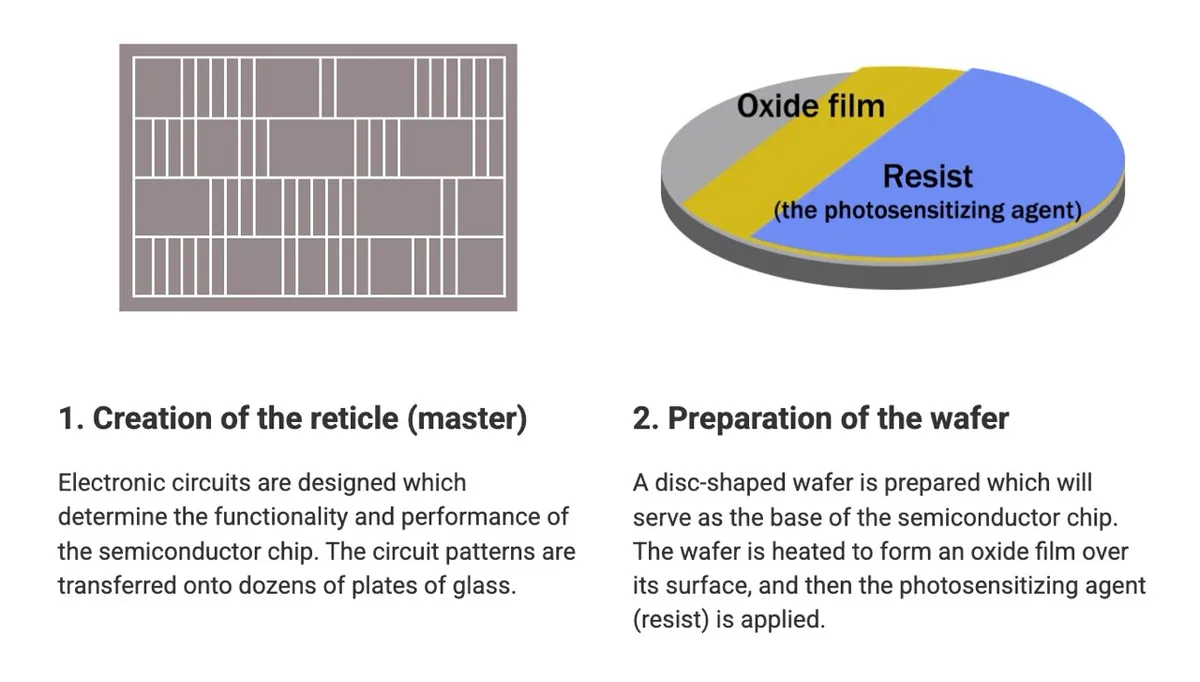

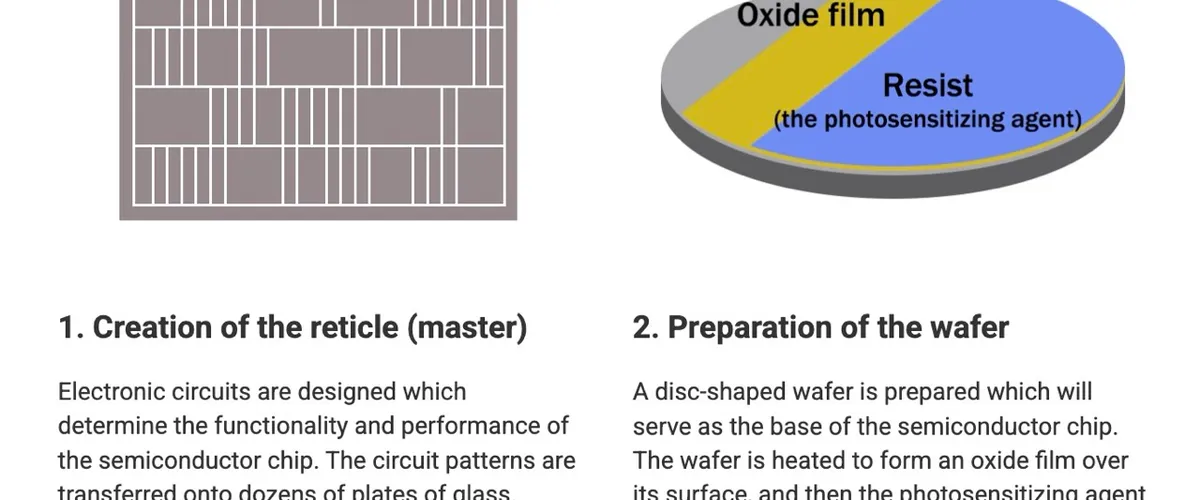

Nanoimprint lithography (NIL) is emerging as a high-throughput, lower-cost patterning technology critical to the AI buildout, enabling nanoscale features in semiconductors, photonics, AR/VR waveguides, and advanced packaging where extreme ultraviolet (EUV) lithography proves too expensive or slow for certain layers. At the heart of reliable NIL lies the anti-stick (release) layer on master or working stamps that prevents resist adhesion during demolding /Microelectronic Engineering/. Traditional solutions relied on fluorinated silanes such as FDTS (1H,1H,2H,2H-perfluorodecyltrichlorosilane) or F13-TCS, which form self-assembled monolayers via molecular vapor deposition or solution processing to deliver ultra-low surface energy /IEEE/.
These PFAS-based coatings face global phase-out pressures due to environmental persistence /SIA/. The shift to PFAS-free alternatives focuses on engineered working stamp resins and hybrid materials that deliver comparable or superior release performance without separate fluorinated coatings. Leading examples include Addison Clear Wave’s (ACW) UV-curable acrylate and epoxy working stamp resins /Addison/, explicitly designed so no additional anti-stick layer is required on the working stamp, and micro resist technology’s OrmoStamp®FF /micro resist/, a fluorine-free inorganic-organic hybrid offering enhanced anti-adhesive properties, low release forces, high transparency (RI ~1.516), low shrinkage (4–6%), and thermal stability up to 270 °C .
Key technical challenges center on matching PFAS’s exceptional non-stick durability and chemical inertness while preserving nanoscale pattern fidelity over hundreds to thousands of imprints, resisting aggressive imprint resists, and maintaining mechanical/thermal stability. Emerging solutions include tailored polymer backbones and additives in PFAS-free resins that reduce or eliminate extra coating steps, plasma-deposited gradient layers, and optimized UV-NIL processes /IFAM/. These innovations cut process complexity, waste from stamp replication, and time, while supporting solvent-free or low-solvent formulations that lower environmental impact and cost.
End-use markets are expanding rapidly with AI-driven demand for efficient chip production and optical components. NIL excels in high-volume wafer-level optics /EVG/, diffractive waveguides for AR/VR/MR, micro-optics, photonics, and select semiconductor layers. The NIL systems market is projected to grow at CAGRs of 9–13% through 2030–2035, with the semiconductor segment showing particularly strong uptake as Canon and others commercialize NIL tools for logic and memory fabrication.
Production capacity for these specialty formulated resins and precursors resides with a concentrated set of innovators and suppliers: primarily in the US (ACW), Germany/EU (micro resist technology, EVG), and Japan (Toyo Gosei and equipment makers like Canon). There are no traditional mineral reserves or large stockpiles; output scales with R&D-to-commercial pipelines and is just-in-time for fabs. Recycling and recovery remain limited because coatings are ultrathin and polymer working stamps prioritize durability and reuse over material reclamation. Geopolitical risks stem from this tri-polar concentration (US–EU–Japan) amid tightening PFAS regulations in the West, potential export controls on advanced materials, and rising competition from Asian players. Diversifying supply chains and accelerating PFAS-free qualification will be essential to avoid bottlenecks as NIL adoption accelerates in AI-critical manufacturing.
These PFAS-free anti-stick innovations are enabling technologies that make NIL scalable, sustainable, and economically viable for the next wave of AI hardware.
Key Insights
How many PFAS-free anti-stick coatings or working stamp resins are estimated to be used in a leading AI accelerator architecture like NVIDIA’s Vera Rubin, and what is the overall volume?
In NVIDIA’s Vera Rubin platform (Rubin GPU with 336 billion transistors on TSMC 3nm, dual-die designs, 288 GB HBM4, integrated into NVL72-scale AI systems with advanced interconnects and CPO), direct NIL usage for core logic patterning remains limited as production relies primarily on EUV and multi-patterning. However, in emerging supporting applications critical to AI performance—such as co-packaged optics (CPO/Spectrum-X Ethernet) for high-bandwidth interconnects and advanced packaging features like fine-pitch RDL or micro-optics—PFAS-free anti-stick coatings and working stamp resins (e.g., ACW formulations or OrmoStamp FF) are seeing growing adoption. A single Rubin GPU package or associated CPO module may involve NIL patterning equivalent to dozens to low hundreds of working stamp imprints per unit (accounting for replica stamps, multiple layers, and typical lifetimes of hundreds of imprints with <1 nm height gain per use), scaling to thousands across a full rack-scale system; overall material volume stays low (grams-scale resin per stamp set) due to thin-film application and high reuse, but system-level demand rises with AI factory deployments.
What is the most critical bottleneck process technology for PFAS-free anti-stick coatings and working stamp resins in NIL for AI semiconductor manufacturing?
The most critical bottleneck is achieving consistent, high-yield demolding and release performance without defects, residue, or accelerated stamp wear over repeated cycles—particularly matching the ultra-low surface energy and chemical inertness of legacy fluorinated silanes (e.g., FDTS) while preserving nanoscale fidelity under aggressive resists, thermal/UV stress, and large-area uniformity. In high-volume flows for AI hardware (photonics, CPO, or advanced packaging), poor release directly causes yield loss, contamination, reduced stamp lifetime (from hundreds/thousands of imprints), and overlay issues that undermine NIL’s cost advantage versus EUV; PFAS-free innovations like tailored epoxy/acrylate resins or hybrid formulations address this through inherent low-adhesion properties and process integration (e.g., with EVG SmartNIL), but rigorous qualification for durability, minimal height gain, and defect-free filling remains the key gate for scaling.
What are the unit economics for PFAS-free anti-stick components in NIL, including long-term supply agreements, cyclicality, and margin growth or defensibility?
Unit economics for these specialty PFAS-free resins and coatings feature high gross margins (typically 50%+ for advanced formulated materials) supported by proprietary formulation IP, performance differentiation, and regulatory tailwinds from global PFAS restrictions. Long-term supply agreements are expanding between material innovators (e.g., Addison Clear Wave with EVG partnerships, micro resist technology) and equipment makers, foundries, or OSATs as NIL qualifies for AI photonics and packaging lines. Cyclicality is moderate—linked to semiconductor capex but buffered by resilient AI infrastructure demand from hyperscalers—while margin growth and defensibility arise from high switching costs once qualified in process flows, scale efficiencies as volumes increase in CPO/advanced packaging for accelerators like Vera Rubin, and barriers from chemistry expertise and ecosystem partnerships, positioning qualified suppliers for sustained profitability and pricing power as NIL moves from niche to broader high-volume AI hardware production.
